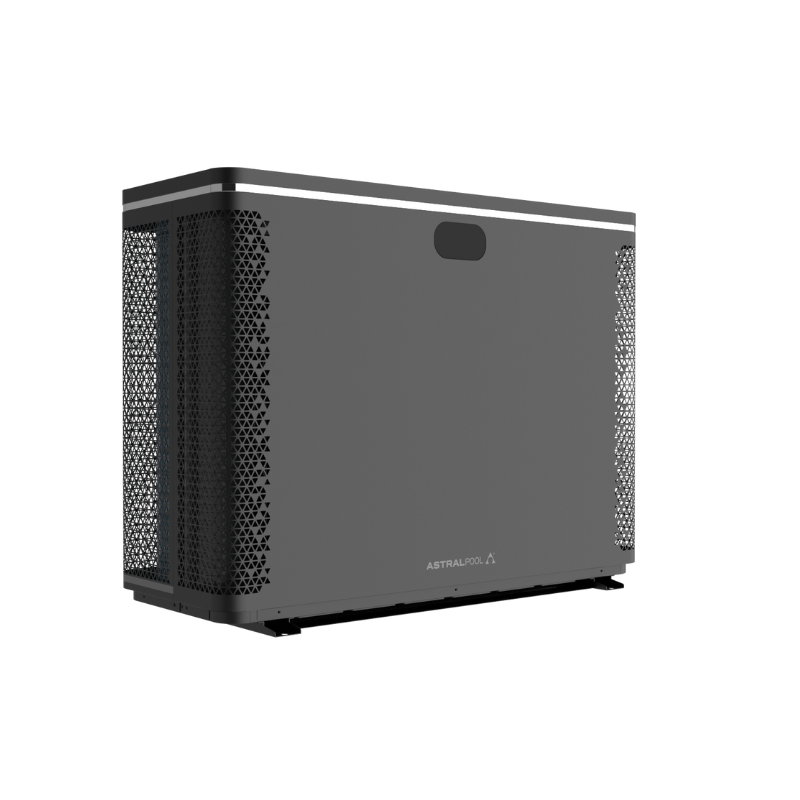

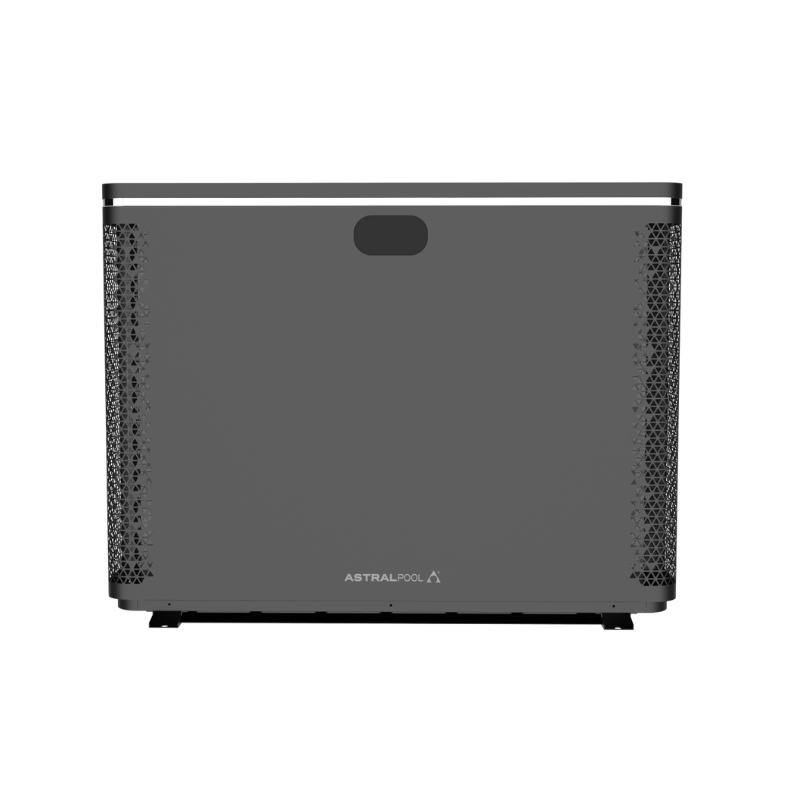

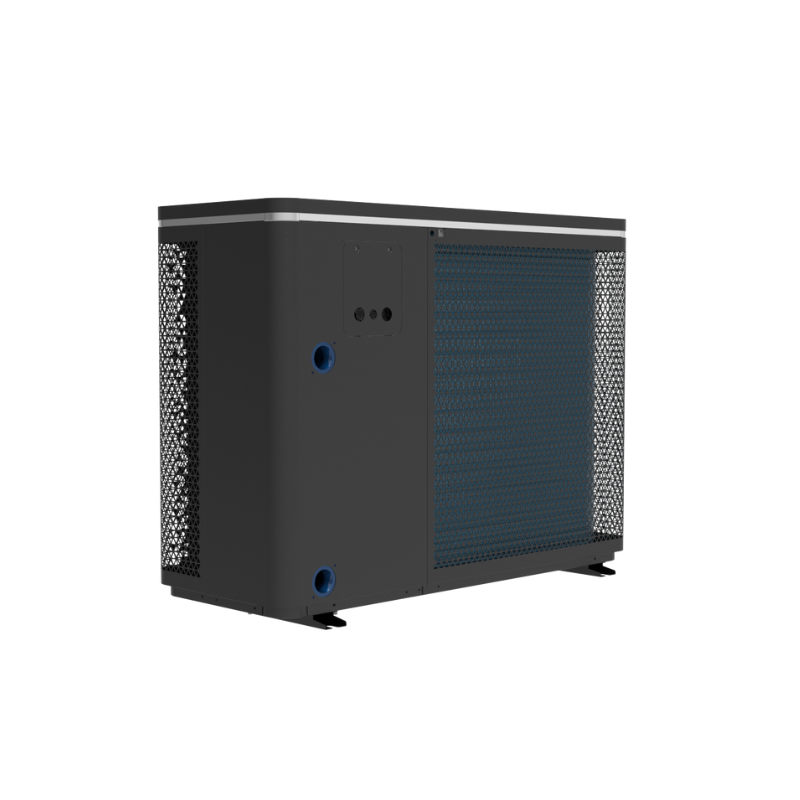

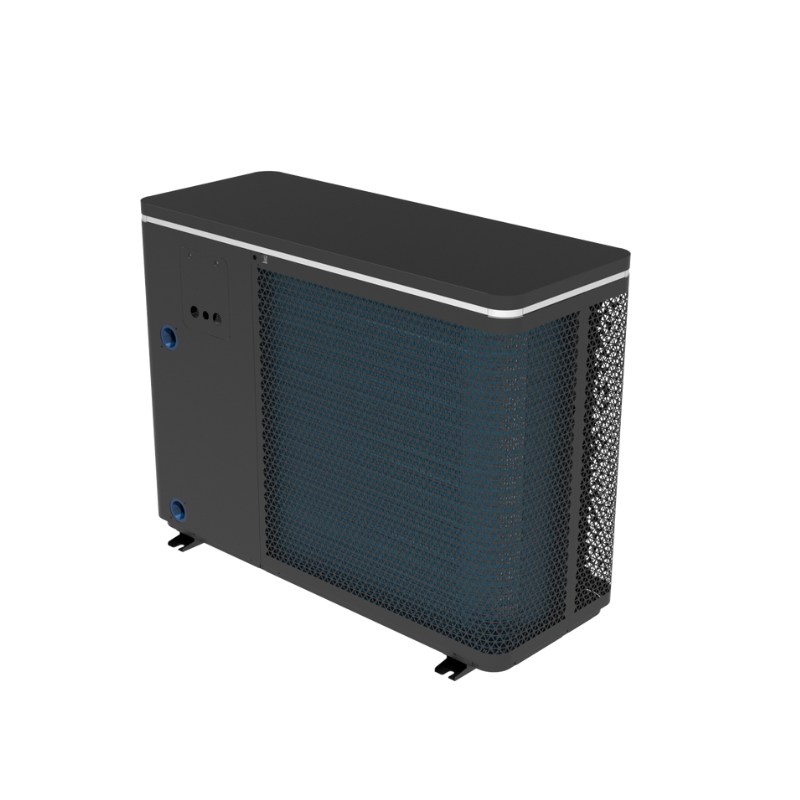

AstralPool Pinnacle IHP SD Heat Pump

A side discharge pool heat pump range covering six capacities, from compact residential pools to larger installations. Available in-store only.

Name
Email address
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Details

The AstralPool Pinnacle IHP SD is a side discharge pool heat pump range covering six capacities, from the SD 107 through to the SD 315. That range makes it suitable for everything from compact residential pools to larger or more exposed installations.

Side discharge units suit plant areas with reasonable clearance around the unit. Our team can confirm which capacity your pool needs and whether a side or top discharge unit is the better fit for your site.

Technical Specs
  • Models: Pinnacle IHP SD 107, SD 125, SD 153, SD 217, SD 250 and SD 315
  • Product codes: 78581, 78582, 78583, 78584, 78585 and 78586
  • Discharge orientation: side discharge
  • Suited to plant areas with clearance around the unit
  • Sizing determined by pool volume, site exposure and cover use
  • Detailed capacity, power draw and dimension specifications available on request
Warranty Info

The AstralPool Pinnacle range is covered by a manufacturer-backed warranty. Duration, terms and conditions are set by the manufacturer and depend on the model, the installation and how the unit is maintained.

Sparkling Pools can assist with warranty registration and act as your local point of contact if a fault arises, arranging assessment and coordinating the claim with the supplier.

A full capacity range for residential and larger pools

The Pinnacle range is the broadest heat pump line AstralPool offers, running across six capacities. That breadth matters because pool heating is unforgiving of approximation. Too small and the unit runs constantly without reaching temperature. Too large and you have paid for capacity the pool will never call on.

Six models to choose from

The range covers the SD 107, SD 125, SD 153, SD 217, SD 250 and SD 315. Smaller units suit sheltered residential pools, while the larger models handle bigger volumes, exposed sites and installations that need to hold temperature through cooler months.

Side discharge design

These units vent air out the side, which generally suits open plant areas with room around the unit. Where clearance is tight, the top discharge IHPT range is usually the better fit, and we can advise which suits your site.

What drives running cost

Heat pump efficiency depends heavily on air temperature, so a unit works hardest in the cooler months when you are most likely to want it. Using a cover, running the pump during the warmer part of the day and sizing the unit properly all make a measurable difference to what heating actually costs you across a season.

Available in-store only — Call to Collect or Call to Install
The Pinnacle range is an in-store only product. Call our team on 09 570 4797 to have your pool sized properly, then arrange collection in person from our St Johns branch at 3/65 Morrin Road, Auckland 1072, or book installation at your property.
